The MDT SRS-XF Premier Folding Buttstock is designed to let you create a compact rifle system - for long hikes or small spaces - that locks up solid to maintain precision at any range.

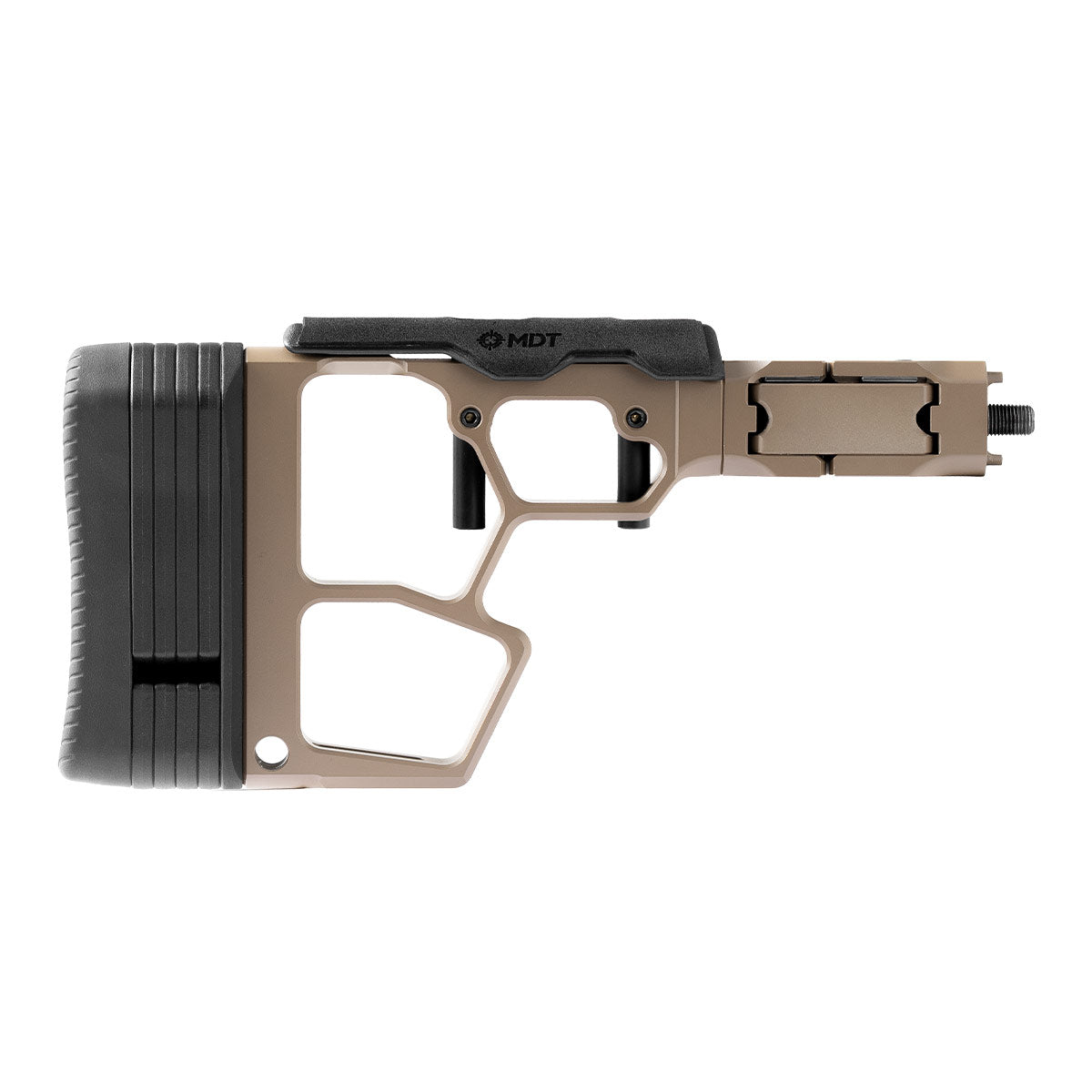

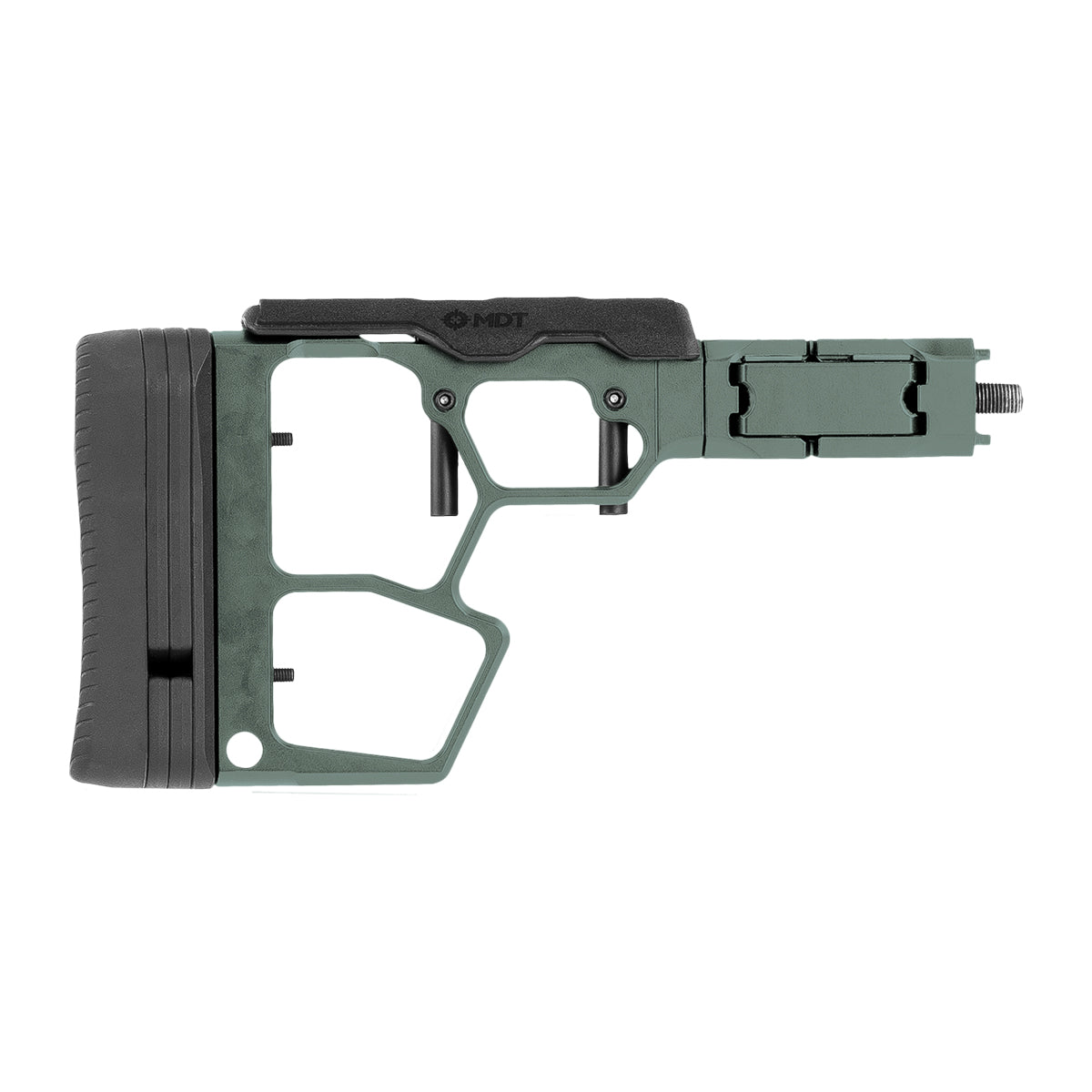

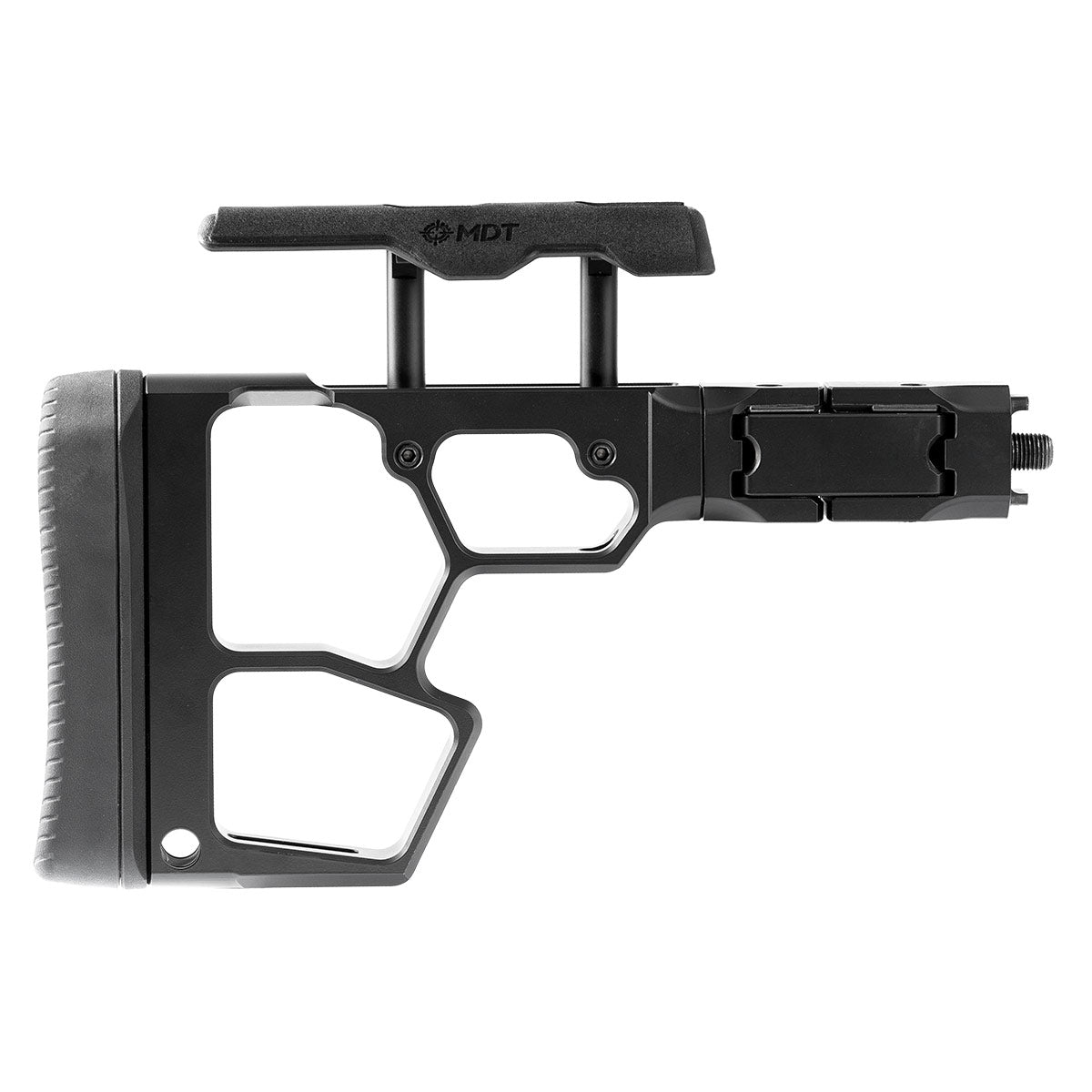

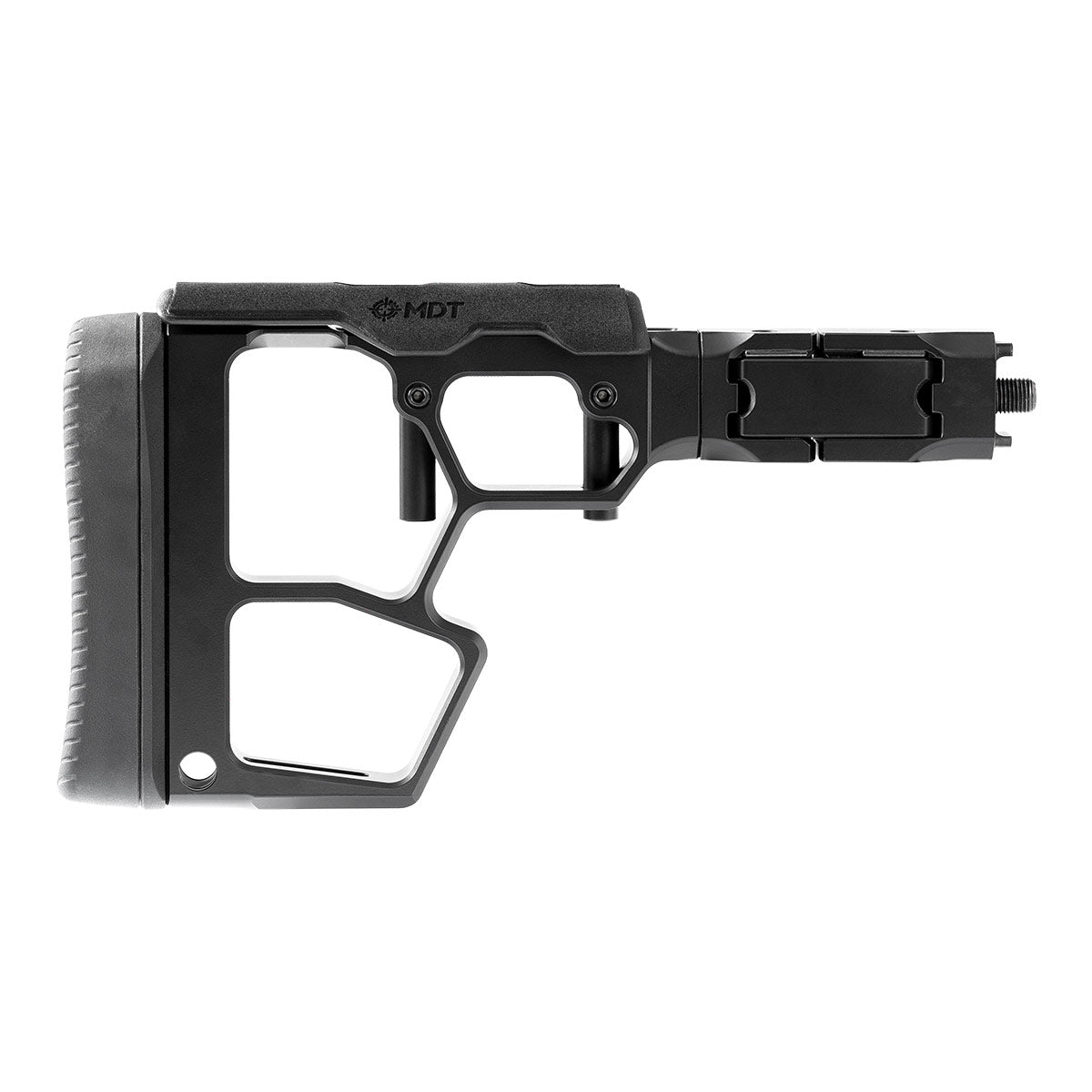

SRS-XF Premier Folding Buttstock
Regular price
$499.99 USD
Shipping
Returns
Pairs well with
EVERYTHING
YOU NEED TO KNOW
PRECISION MADE PORTABLE
USE ON ANY XTN INTERFACE

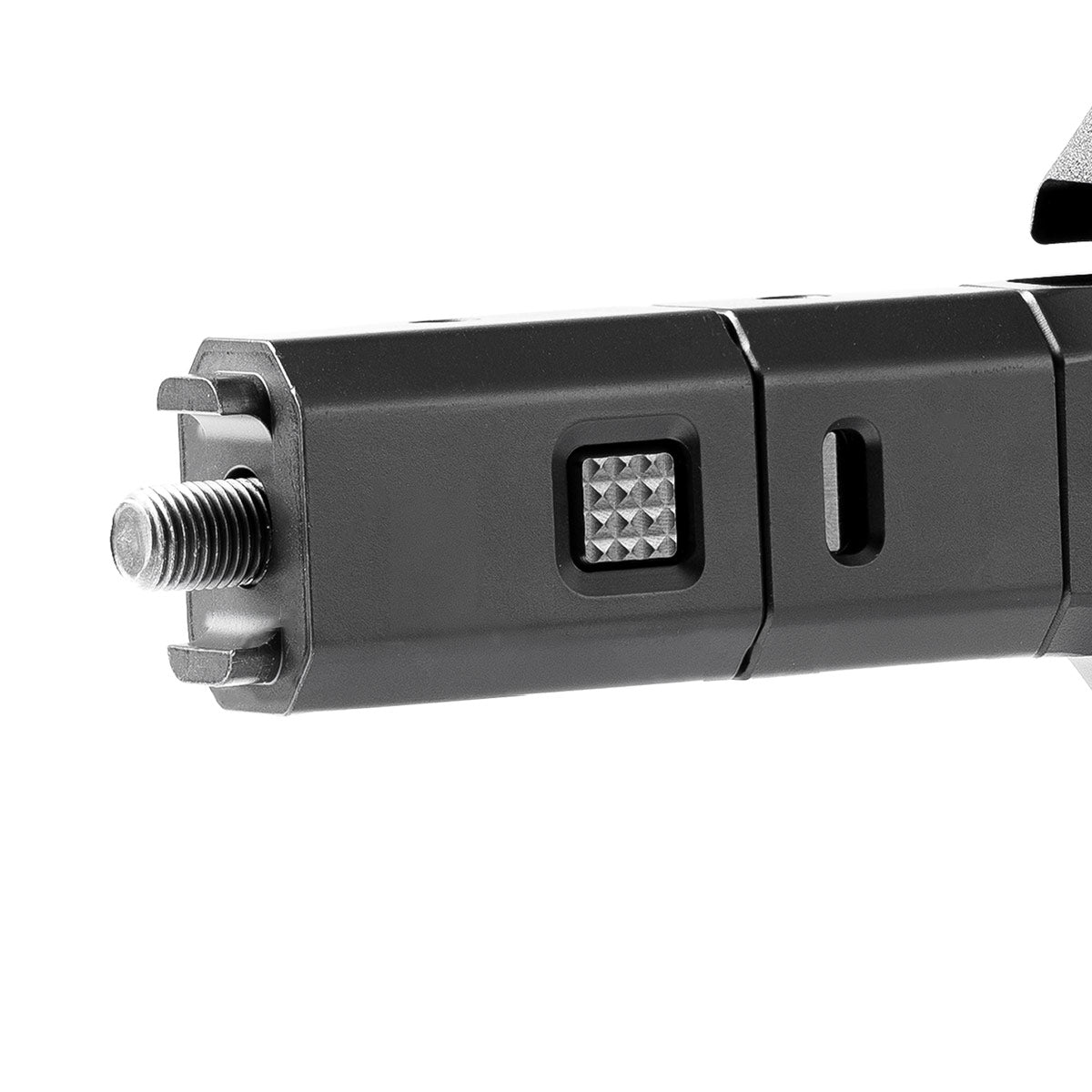

Easily adapt any XTN Interface Chassis to a folding buttstock with a single screw.
BOLT CLEARANCE
Large pocket allows it to fully clear and fold over most aftermarket and factory bolts without having to make adjustments.
FAST TARGET ACQUISITION
The SRS-XF Premier Folding Buttstock is compatible with our Buttstock Weight and LOP Spacer Weight to help you achieve that perfect balance and to stay on target.
THE PERFECT FIT
Compatible with Vertical Adjustment Buttpad and the ability to finely tune your length of pull provides a comfortable shooting experience tailored to you.

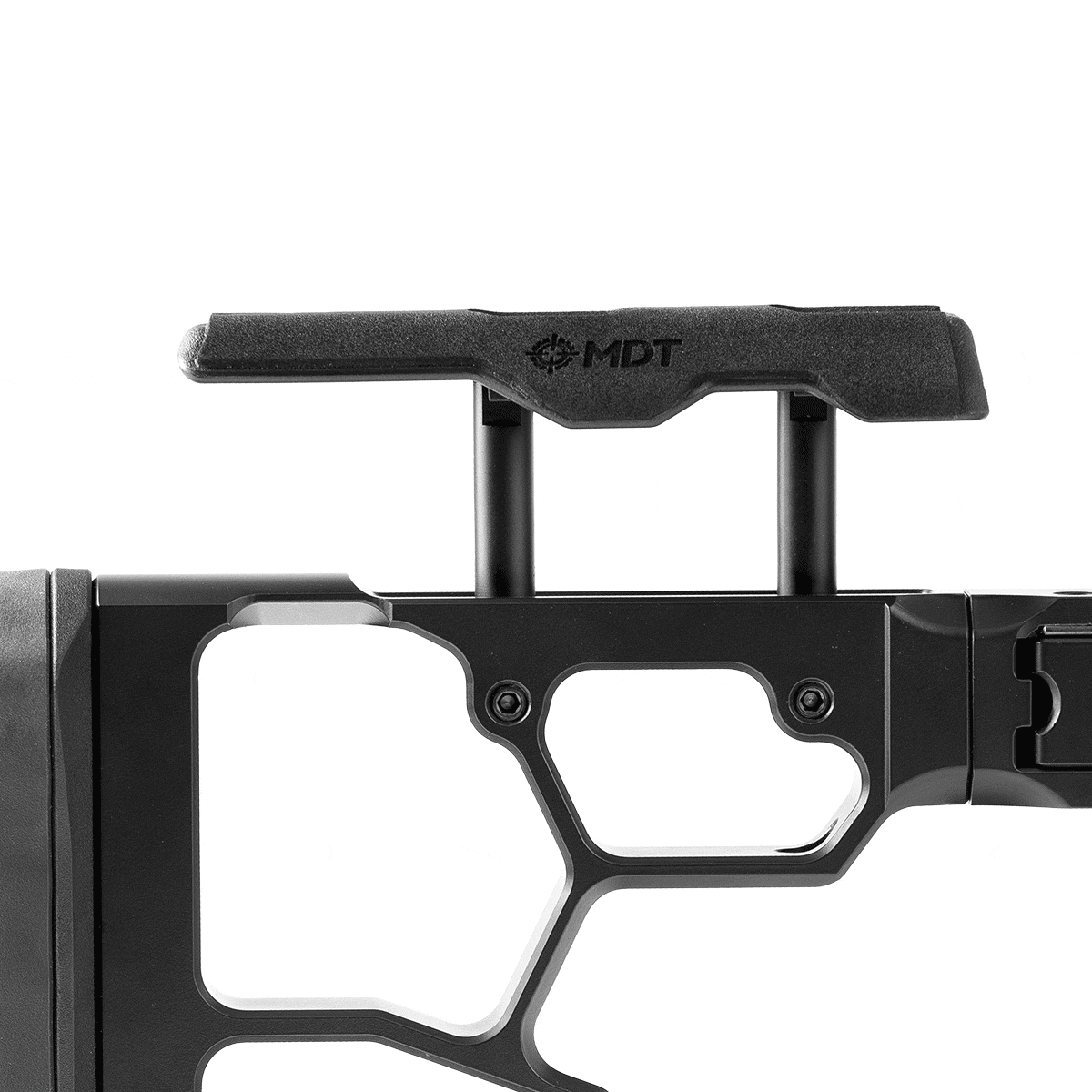

LOW PROFILE CHEEK PIECE
New and improved adjustable cheek piece. Low-profile to help clear bolt handles.
RIGID & ROBUST
Skeletonized body providing a robust structure.
QD SLING CUPS
ADJUSTABLE LOP VIA SPACERS (x4 INCLUDED)
M-LOK SLOT ON BOTTOM FOR BAG RIDERS
ADJUSTABLE SLIM CHEEK REST
WEIGHT COMPATIBLE
REVERSIBLE FOLDING DIRECTIONS

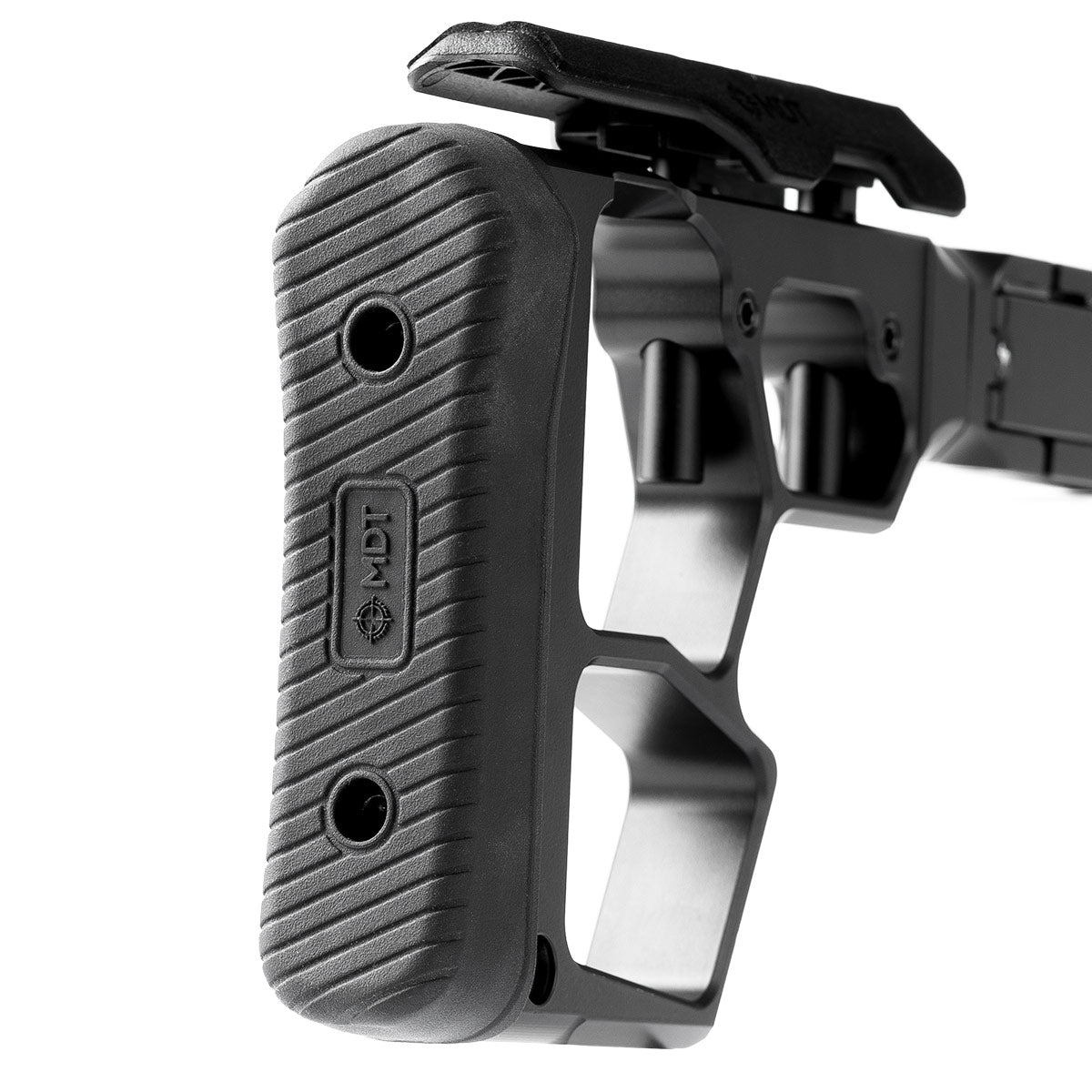

COMPATIBLE WITH ADJUSTABLE BUTTPAD

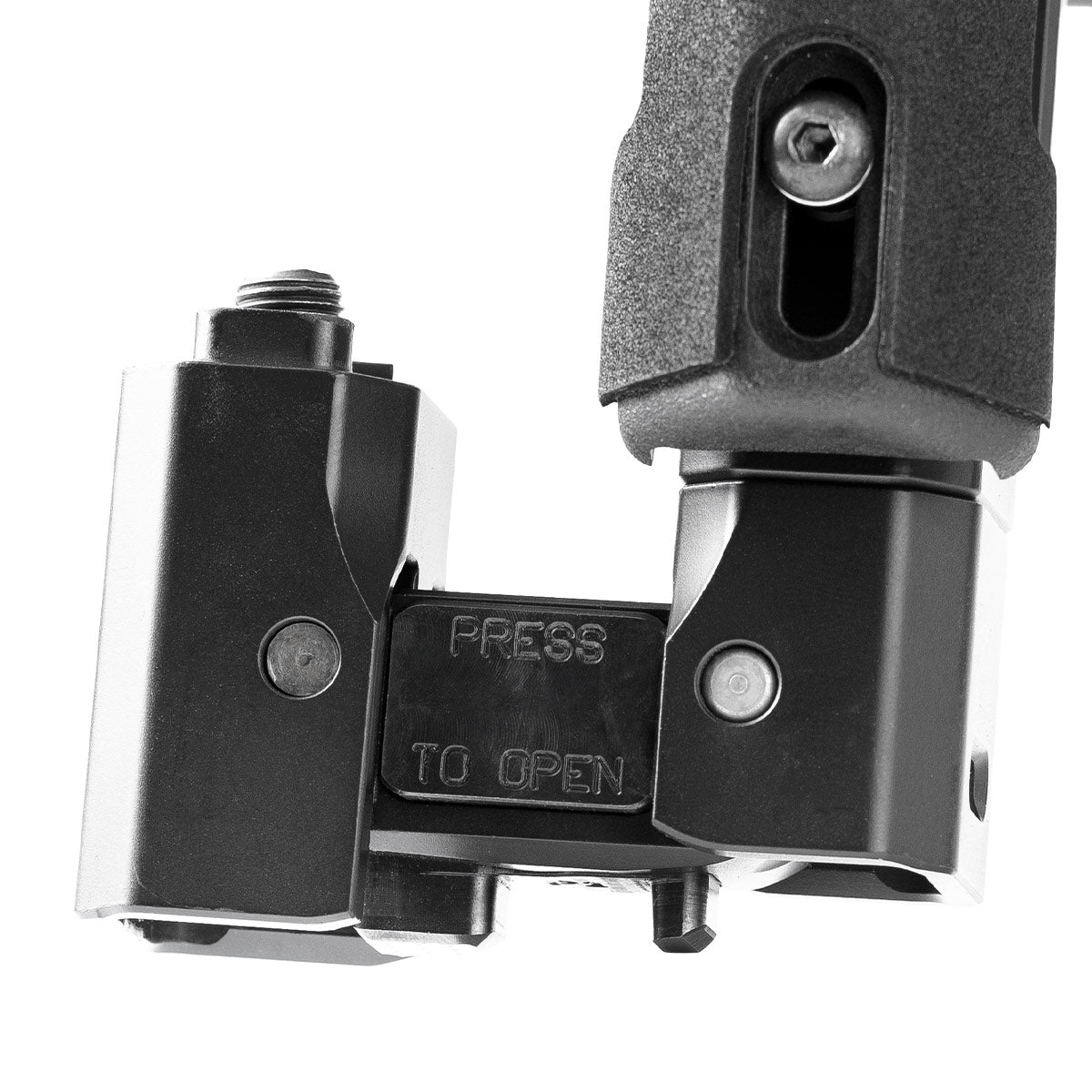

LOCK-IN FOLDING POSITIONS
COMPATIBILTY
- Any MDT chassis that uses the XTN interface
- NOT AR compatible
- For Ruger American chassis, to ensure the bolt handle does not interfere with the buttstock when folded, you must either:
- reverse the folding adapter so that it folds on the non-bolt side of the chassis, or
- flip the folding adapter so that the top button is on the underside of the folding mechanism and the long adapter is inserted into the buttstock skeleton
- For left-handed chassis, you must reverse the folding adapter so that it folds on the left-hand side of the chassis to ensure it will fold over the bolt handle.
- If using an LSS GEN3 with the Short XTN Interface, you may need to reverse the folding adapter so that it folds on the non-bolt side of the chassis to ensure the bolt handle does not interfere with the buttstock when folded.
SPECIFICATIONS
OVERALL LENGTH
Width - 10.75"Height - 5.31"
CHEEK RISER ADJUSTMENTS
Back-Front: 0.60”Height: 1.20”
LENGTH OF PULL (LOP)
12.5in - 13.5in (using 4 included spacers)
WEIGHT
1.35 lbs (21 oz)
BUTTSTOCK INTERFACE
XTN
MATERIAL & FINISH
Cerakote 6061 Aluminum
WHAT YOU GET
INCLUDED HARDWARE
- T-handle ball end hex key: 7/32"
- 4x Length of pull spacers (1/4" each)
- 2x #10-32 x 1.25” screws
- 2x #10-32 x 1.75” screws
