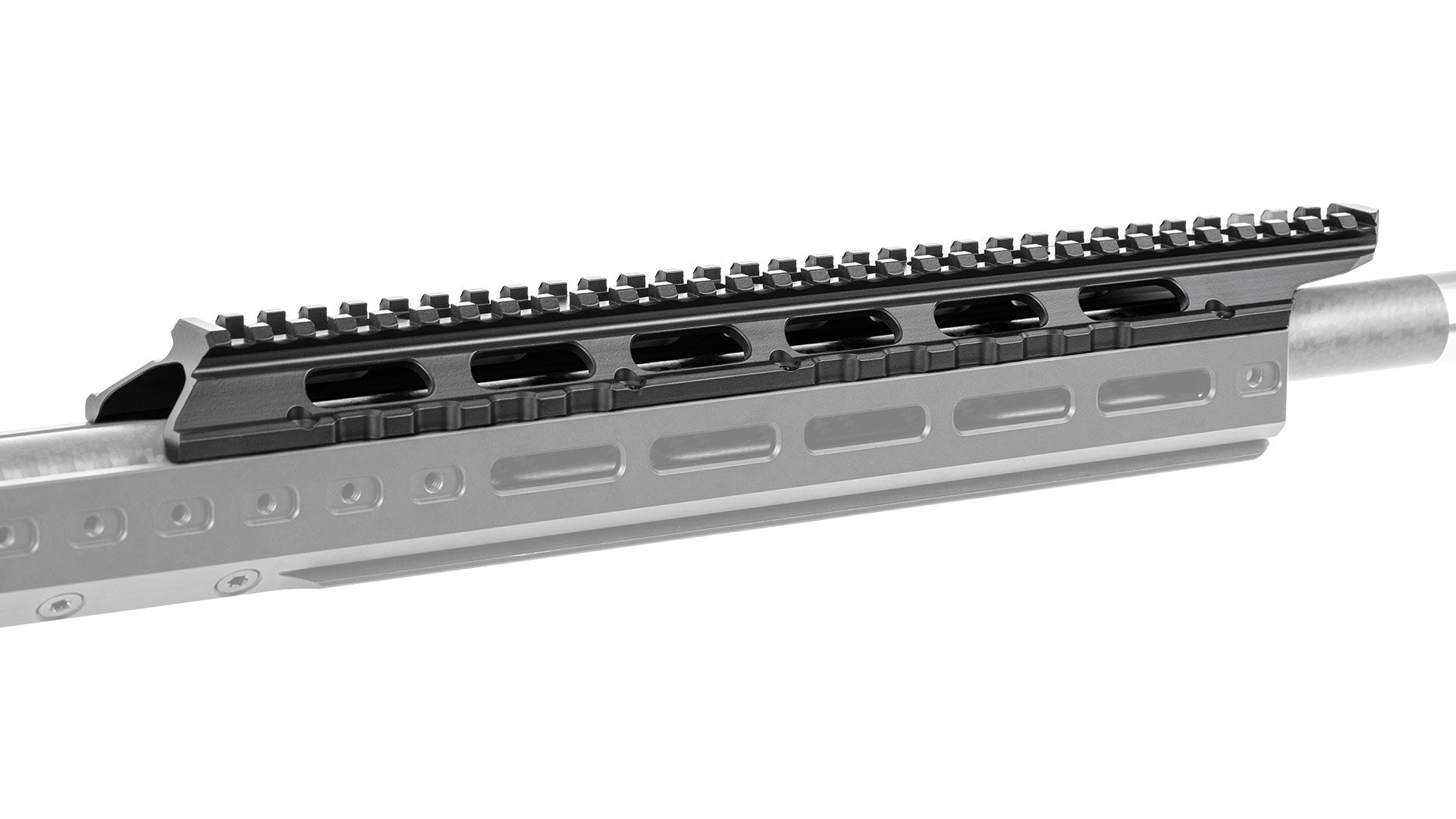

The 13" 20 MOA bridge runs the full length of your forend, keeping your clip-on night vision co-witnessed with your riflescope. What you see through the NV is what your reticle is looking at, so you're not compensating for a bridge that's slightly off-line.
New

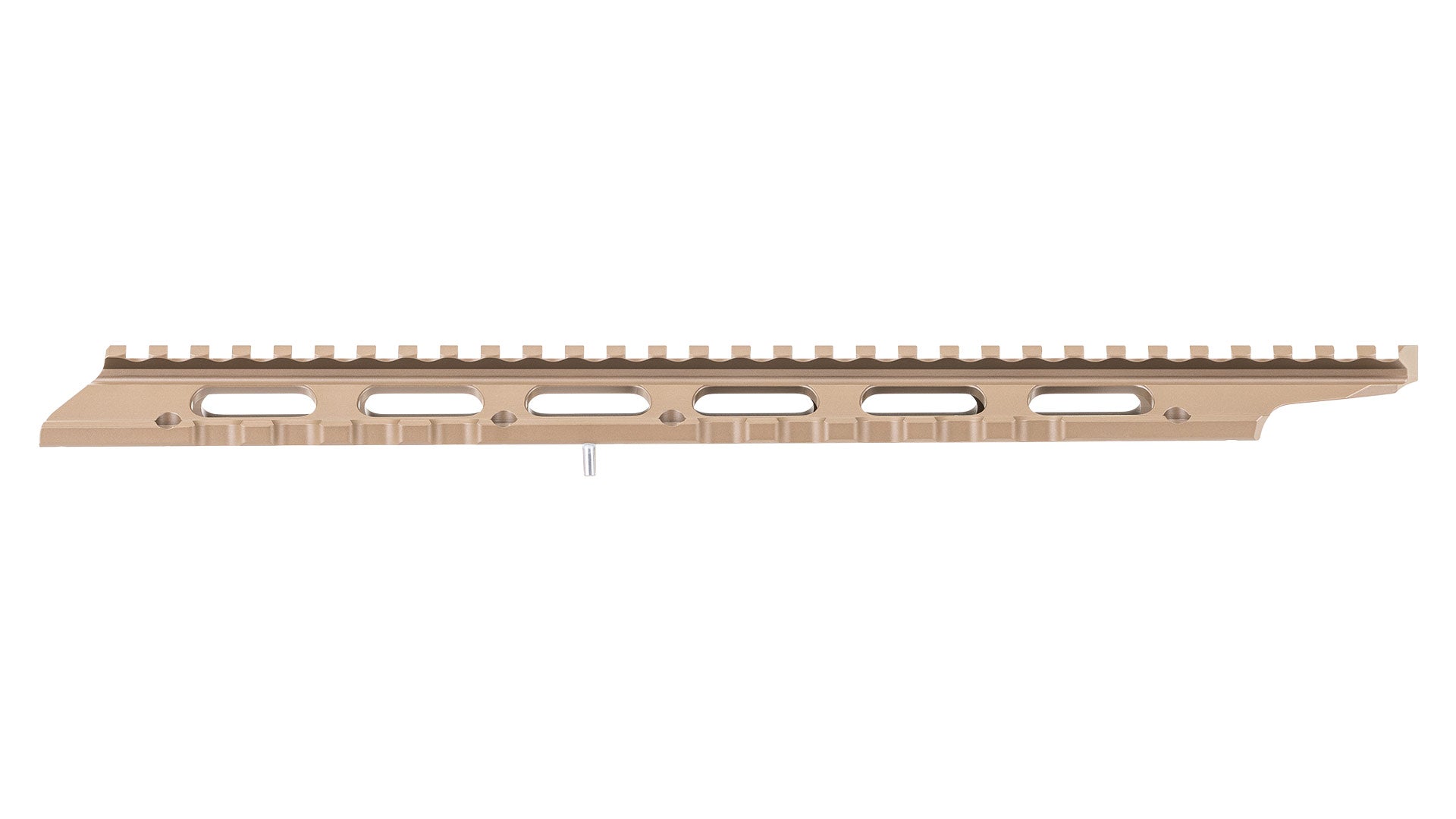

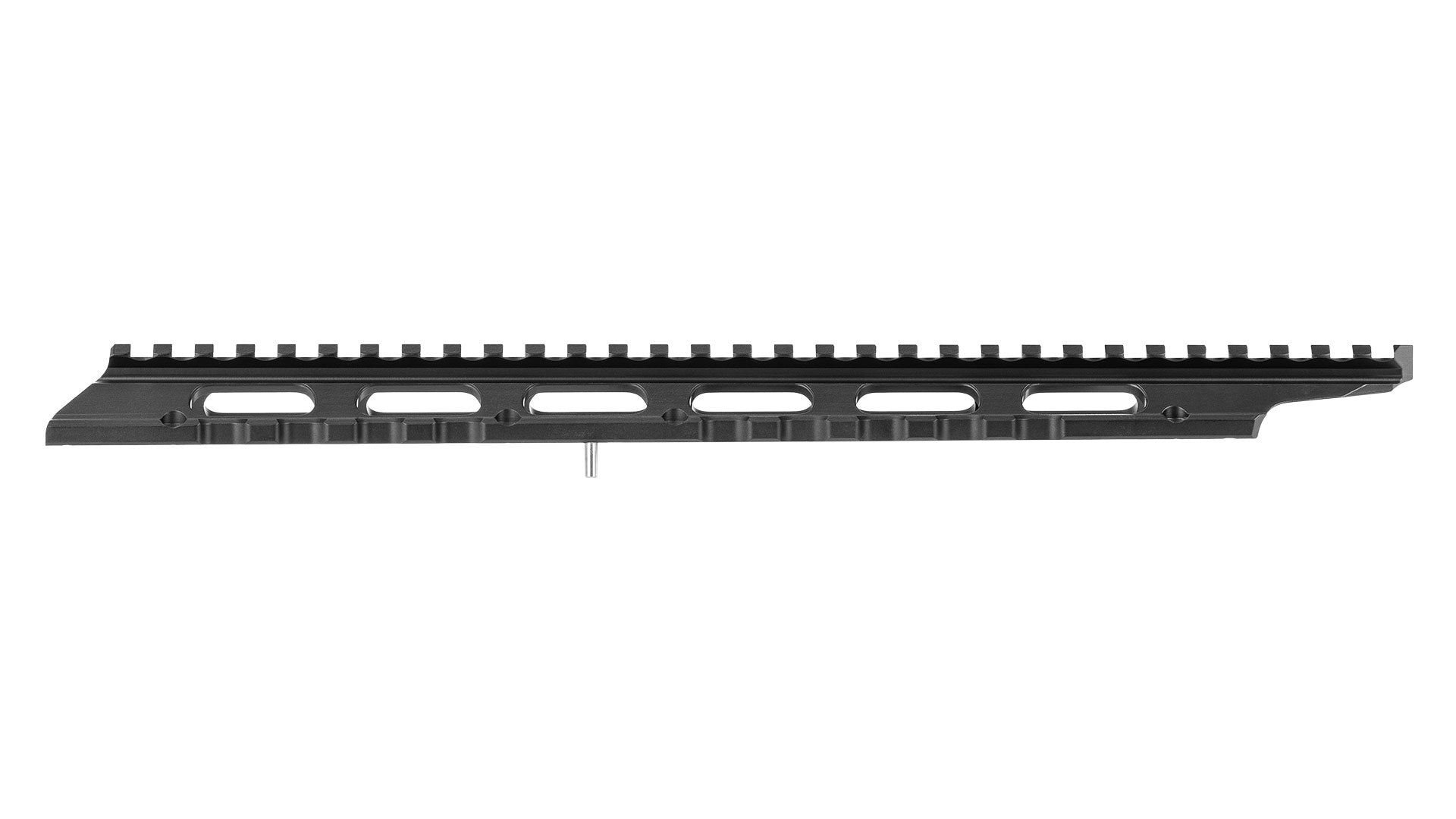

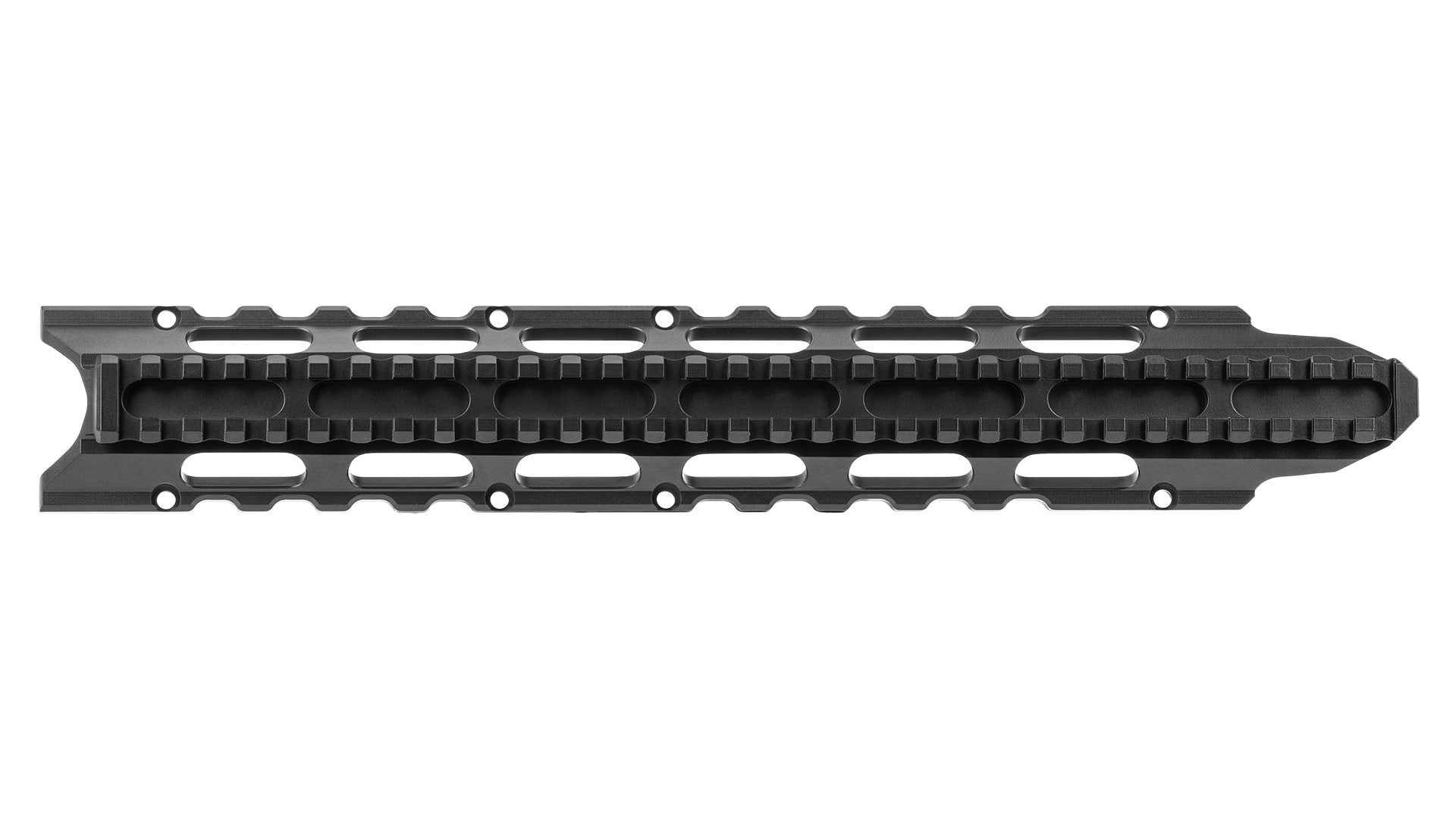

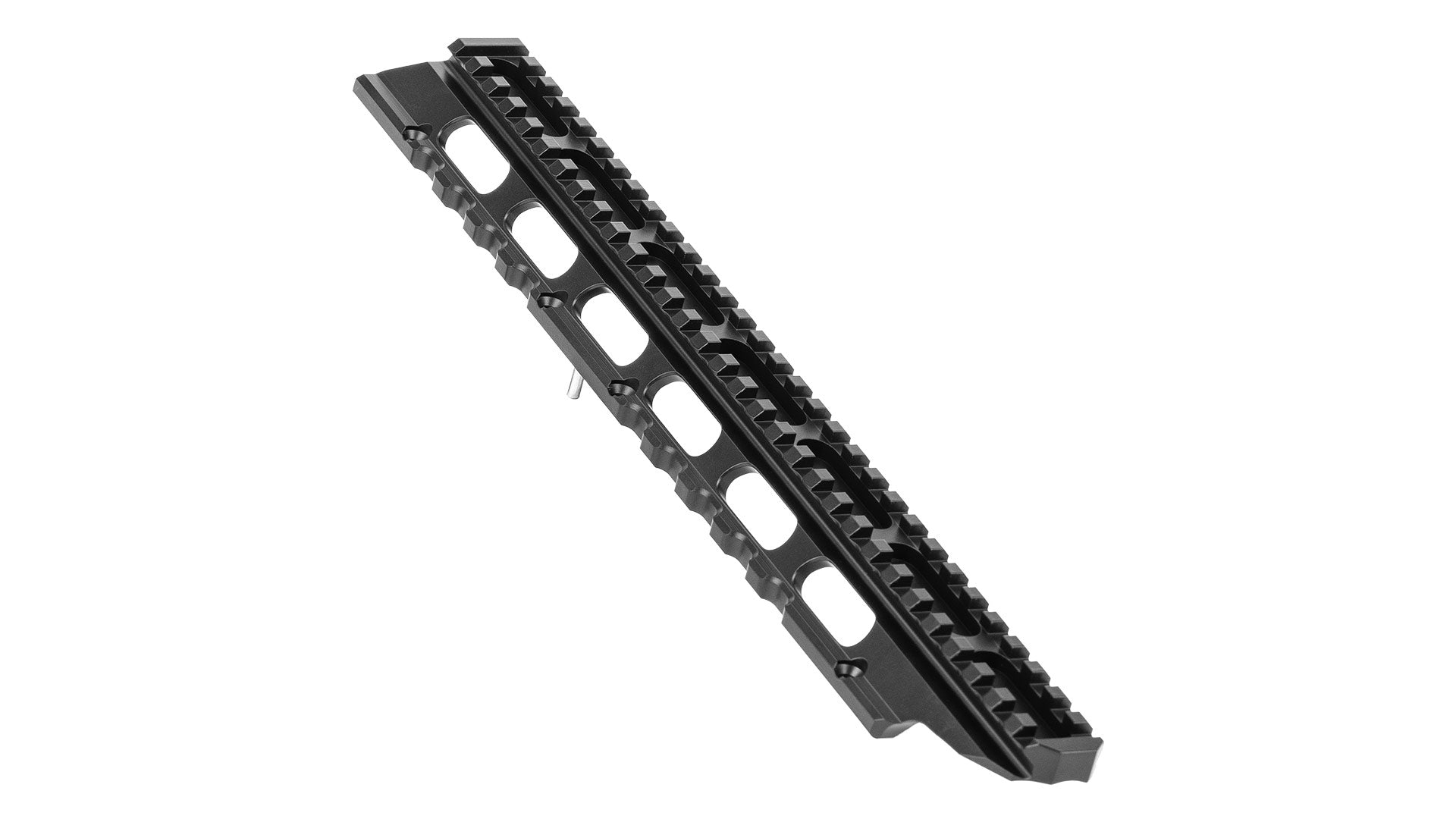

One-Piece NV Bridge
Regular price
$224.99 USD
In Stock items ship in 1-2 business days
Backordered items ship in 8-10 weeks
30 Day Money Back Returns
Shipping
Returns
Pairs well with
ONE ZERO, DAY OR NIGHT
BUILT TO TAKE THE CLAMPING
Mounting and removing a clip-on repeatedly wears on a rail that isn't built for it. Type III hard anodizing and Cerakote finish the bridge for exactly that kind of repeated use, so the mounting surface holds up over a full season instead of showing wear after a few range trips.
FITS YOUR BARREL
Larger contour barrels don't always clear a stock NV bridge setup. The included spacer kit raises the bridge 0.2" to accommodate straight contours up to 1.25", so a heavier barrel doesn't rule out running the bridge.
ONE ZERO, DAY OR NIGHT
The 13" 20 MOA bridge runs the full length of your forend, keeping your clip-on night vision co-witnessed with your riflescope. What you see through the NV is what your reticle is looking at, so you're not compensating for a bridge that's slightly off-line.
BUILT TO TAKE THE CLAMPING
Mounting and removing a clip-on repeatedly wears on a rail that isn't built for it. Type III hard anodizing and Cerakote finish the bridge for exactly that kind of repeated use, so the mounting surface holds up over a full season instead of showing wear after a few range trips.
FITS YOUR BARREL
Larger contour barrels don't always clear a stock NV bridge setup. The included spacer kit raises the bridge 0.2" to accommodate straight contours up to 1.25", so a heavier barrel doesn't rule out running the bridge.
13" 20 MOA NV BRIDGE
Keeps clip-on night vision or thermal co-witnessed with your optic across a full-length rail.
TYPE III HARD ANODIZED & CERAKOTE FINISH
Adds durability for repeated clamping and removal.

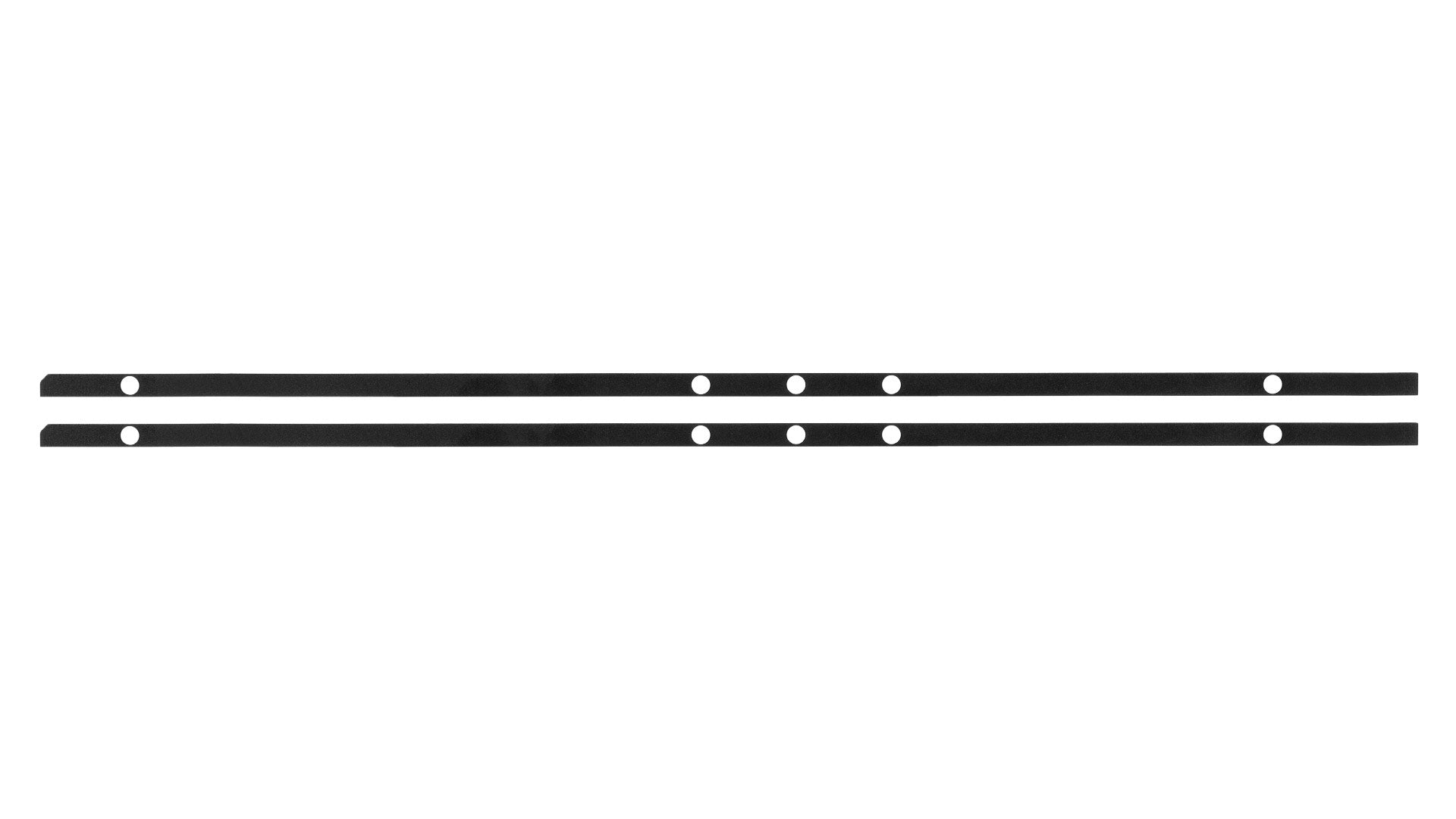

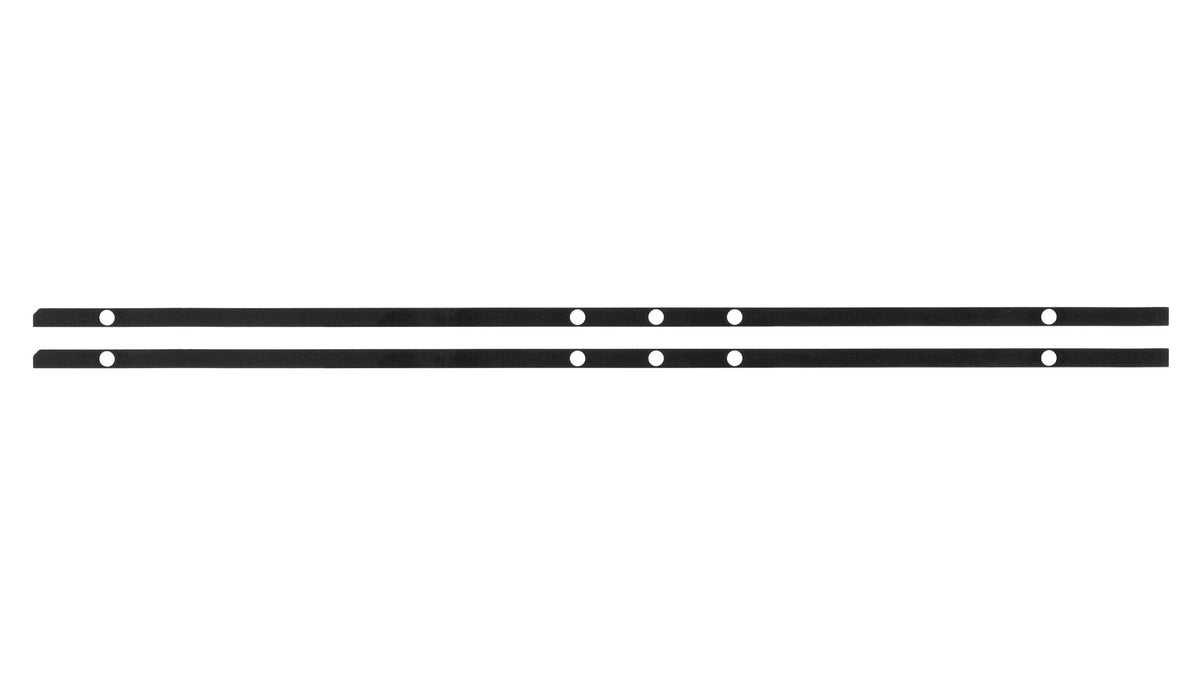

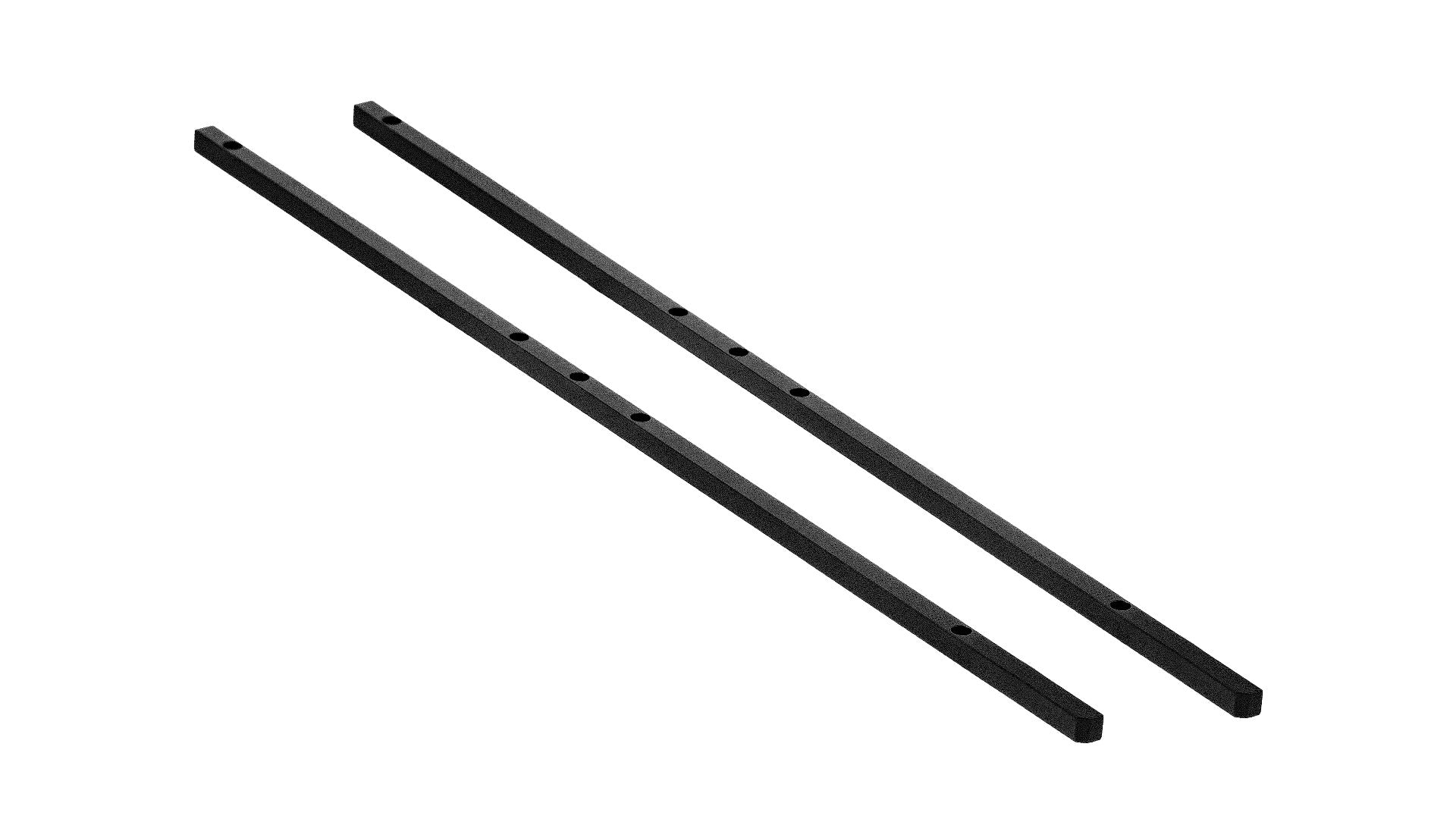

INCLUDED NV BRIDGE SPACER
Accommodates larger contour barrels up to 1.25" straight.
Compatibility
NV Compatible Chassis
NV Bridge Notes
- Muzzle diameter must be less than 1.1"
- Barrel length must be more than 15" to clear the end of the NV bridge
- Use a 20 MOA scope base/integrated rail
- Minimum recommended scope ring height: 1.5"
Using NV Spacers
For larger barrel diameters up to 1.25" straight MAX. Picatinny rail on the NV bridge will not be in-line with the scope base. Not recommended for NV/Thermal use. Higher scope rings than 1.5" may be required to clear the NV bridge -OR- a scope with a smaller objective lens diameter (1.700"+ height recommended)
SPECIFICATIONS
DIMENSIONS
13.01" x 1.96" x 0.95"
WEIGHT
Bridge: 5.9 oz
Spacer: 1.3 oz
MATERIAL
6061-T6 aluminum, Type III hard anodized & Cerakote
WHAT YOU GET
One-Piece NV Bridge
NV Bridge Spacer x2
- 6-32 x 0.375in FHCS SS BO TD
- 6-32 x 0.625in FHCS SS BO TD
[T10 15in-lbs]
