DOES ARCA BELONG ON A HUNTING RIFLE?

Hunters tend to rely on the tried and true. If it was good enough for Grandpa, it's good enough today. Occasionally, a technology jumps from competition or tactical use into hunting, but adoption is slow. When I first showed up with an Arca rail at the hunting school where I taught, the other instructors noticed. "No hunter would use that," some said — it's too heavy or uncomfortable to carry. A year later, every naysayer had added the utilitarian interface to their rifle.

An Arca rail (short for Arca-Swiss) is a standardized dovetail mounting system developed for tripods and cameras. In the shooting world, it's usually an aluminum dovetail about 1.50" wide, mounted to the underside of a rifle stock or chassis. It allows quick, tool-less attachment of bipods, tripods, barricade stops, and other accessories by sliding and clamping anywhere along the rail — giving shooters flexibility, speed, and stability.

BENEFITS OF ARCA RAILS

• Proven Platform:Arca was highly adopted in photography long before the firearm community embraced it.

• Robust Attachment: The wide dovetail spreads clamping force and outperforms a 1913 Picatinny in adjustment speed and surface-area contact.

• Tool-less Operation: Slide, clamp, and go.

• Cost-Efficient: Simple geometry is easy to machine or extrude, driving costs down.

• Structurally Superior: Arca is stronger than Picatinny, which is of similar weight.

This last point is important. By removing the recoil lugs used on Picatinny rails and widening the footprint, an Arca cross-section is roughly 2.6× stronger in bending than an equal length of 1913 Picatinny (with both made from 7075-T6). That extra stiffness isn't just for accessories — it actually stiffens the handguard when used as an integral or mounted rail.

Note: Ten-inch sections of the two rails, both modeled in 7075-T6 aluminum, weighed within a fraction of an ounce of each other; the Picatinny was ≈0.18 oz lighter in that comparison. Because Arca's shape is simple and wide, manufacturers can exploit composite materials like carbon fiber for even bigger gains. An integral carbon-fiber Arca handguard delivers weight savings and stiffness, behaving like an I-beam.

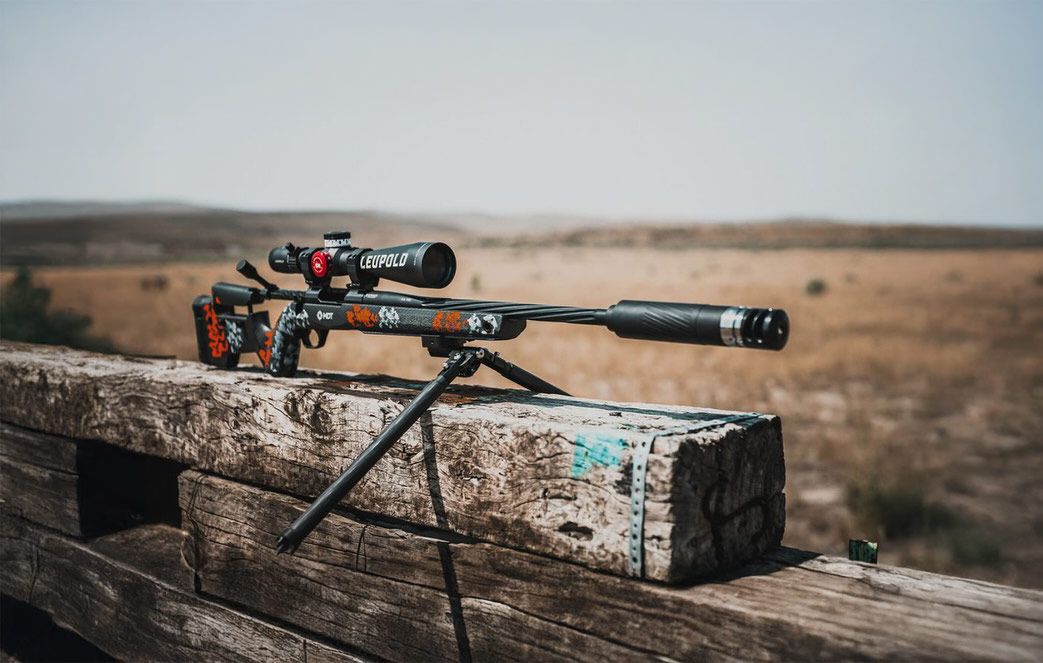

ARCA AND THE CRBN STOCK

I was skeptical at first. I've seen carbon stocks from high-end makers crack under impact, compression, or heat-induced bond-line failure. I'm not gentle with hunting rifles. After a year of weekly use, my CRBN stock has held up. In and out of tripod heads, bipods on and off, competing in NRL Hunter matches with a Garmin Xero radar mounted to the rail — it has stood up. I even dragged a mule deer while the rifle was slung from the built-in QD cups for several hundred yards. This stock has earned its stripes. My previous (heavier) carbon stock suffered a fore-end blowout where the bipod was attached to the sling swivel. With the integral Arca, that worry is gone. Arca is flat. Many hunting stocks prioritize hand ergonomics over fundamentals of marksmanship, shaping the stock for an ideal off-hand position. The CRBN is at home, squared up behind the rifle, shooting from a bag or tripod. Its length-of-pull is generously short but adjustable — I can set the butt near my centerline without compromising neck position or eye relief. Another complaint I had with carbon stocks was a metallic "ping" on firing. The CRBN is dead — it absorbs the recoil harmonics with every round of my 6.5 PRC. The CRBN happens when intelligent design meets input from world-class shooters and hunters. It represents an evolution in hunting rifles, and Arca is here to stay.

Technical Appendix

Materials: Both rails were modeled in 7075-T6 aluminum (density = 0.1015 lb/in³; yield strength = 503 MPa).
Lengths compared: 10" sections.
Widths & heights: - Arca rail: 1.50" wide × 0.24" thick, full-depth 0.25" slot down center. - Picatinny rail: 0.83" wide × 0.40" thick, with 25 slots (0.206" wide × 0.118" deep) at 0.394" pitch.

Weight Calculation
Arca:
- Gross cross-section area = 1.50 × 0.24 = 0.36 in².
- Center slot area = 0.25 × 0.24 = 0.06 in².
- Net = 0.30 in² × 10” = 3.00 in³.
- Weight = 3.00 × 0.1015 lb/in³ × 16 oz/lb = 4.87 oz.
- Adjusted for dovetail/profile cuts: ~4.1–4.6 oz.
Picatinny:
- Base volume = 0.83 × 0.40 × 10 = 3.32 in³.
- Slot volume removed = 25 × (0.206 × 0.83 × 0.118) = 0.50 in³. - Net = 2.82 in³.
- Weight = 2.82 × 0.1015 × 16 = 4.57 oz.

Bending Stiffness (Section Modulus)
Section modulus (rectangular approximation):
S = {b•h^2}{/6}
- Arca effective width (after slot): ≈1.25" × 0.24" thick → S ≈ 0.012\ in³. - Picatinny effective width (after slotting): ≈0.46" × 0.40" thick → S ≈ 0.0046\ in³.
Ratio: Arca ≈ 2.6× stiffer in bending about the strong axis.
